An ST18 and an ETA 2892-2, a review

40219 Views 18 Replies 14 Participants Last post by Scottish Steve, Oct 21, 2012

lysanderxiii

Discussion Starter · Apr 27, 2009

17

Foxint requested I review and compare an ST18 with an ETA 2892, since he was supplying the two movements, how could I refuse?

The ST18 was a 23 jewel version, operating at the normal high beat speed of 28,800 bph. Initial timing showed the movement to be fairly well timed. The beat error was 0.4 milliseconds and the average rates were +8.2 s/d in the dial up position and +15.2 s/d in the crown down position. In a wristwatch this would result in approximately +10 to +12 s/d when worn.

The ETA 2892 was an older version, dating to approximately the late eighties to the mid nineties, being a -2 variant, not the current A2 version produced today. This was a 21 jewel movement. Being used, no comparison of initial timing could be made.

Some general comparison shots (The ETA 2892 is the first or left hand image.)

Front

Here they both are again without the Autowind bridge installed so we can see the gear train:

From this point on we will stick with the ST18's disassembly, showing where the parts go.

Here the train cock has been removed, exposing the third, fourth (in the center) and escape wheels:

Here the gears are removed, you can see the balance stop lever, the gold/copper colored part up near the stem:

Now the entire barrel bridge, barrel and off-set center wheel has been removed. The barrel bridge has all the parts for manual winding installed on the underside. It's a fairly busy assembly, we'll get into that in a later post when we discuss the operation of the movement in detail.

Balance removed:

Pallet cock and pallet removed:

Here is the mainspring out of the barrel, seems well formed:

And the balance, This also seems well made:

Here is the underside of the autowind bridge.

And here are all the parts of the automatic winding mechanism

And the rotor:

The 2892-2 disassembled the exact same way, so no shots of it coming apart.

This is just the introduction, in a future post on this thread we will get comparison shots of all the major, and some of the minor, parts of both movements and how they stack up against one another.

Then when we have compared the parts we will discuss the ETA 2892 design in general, and the ST18 specifically.

Be seeing you...

See less See more

Reactions: 4

1 - 19 of 19 Posts

gigfy

· #2 · Apr 27, 2009

Thanks! I'm waiting with bated breath. For the comparison AND the pictures! (pics are blocked at my work)

Cheers,
gigfy

igorschutz

· #3 · Apr 27, 2009

WOW! Nice post!!!

I can't wait for the upcoming posts!

Many thanks for the effort,

Igor

jason_recliner

· #4 · Apr 28, 2009

gigfy said:
(pics are blocked at my work)

you understand my pain!!!!!

Pawl_Buster

· #5 · Apr 28, 2009

Your 'tear down' posts are the best :-!

:thanks

I also wait in anticipation of your detailed descriptions

lysanderxiii

Discussion Starter · #6 · Apr 28, 2009

24

Comparison shots (ST18 first or on the left).

The pallet forks and jewels. Bothe forks are well made, with little polish on them, which is atypical of ETA. The ST18 shows the typical heavy dose of shellac on the pallet jewels, and its unsightly bubbling, this does not affect the operation of the movement.

Underside of the balance, showing double roller and the notch for the safety pin. You may note some slight differences. The ST18 uses the traditional fixed pins, while the the ETA uses their ETACHRON design.

Upper view, the only notable difference is the slot in the eccenteric goes all the way through the head in ST18.

The top of the barrel.

The ST18 has a serial number, apparently, to make it look as if it is a chronometer.

Shot of the jewels. We can see traces of oiling on the ST18.

Cutout for the balance, showing the ETA markings

Post for the cannon pinion

Underside of the barrel bridge, the ST18 has a jewel for the barrel arbor.

Top of the barrel bridge, showing the nice decoration on the ST18.

You can see the ST18's fit and finish is comparable to the ETA 2892-2. A little later we will get into the other parts.

See less See more

lysanderxiii

Discussion Starter · #7 · Apr 28, 2009 (Edited)

42

More comparison shots:

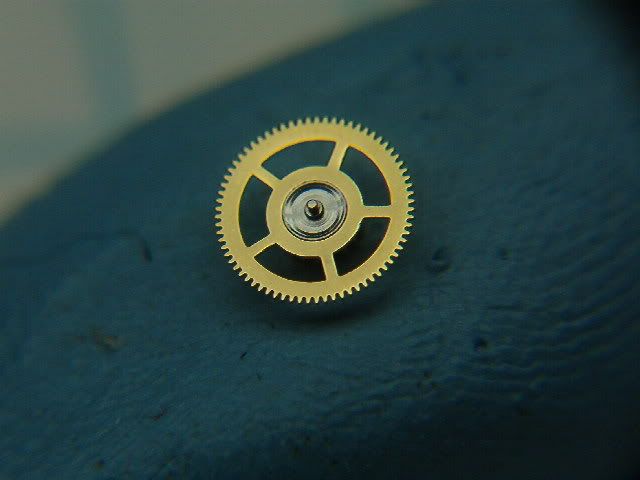

Here is the offset center (or second) wheel. For those who may not know, the first wheel in the gear train is the large gear on the drum of the barrel. This pivot takes the largest load of any of the wheels, that is the reason for the large diameter axle.

Bottom view:

The third wheels:

Bottom view:

The escape wheel, with the focus on the pinion gear:

The focus on the escape wheel:

The fourth wheel and the post for the second hand. The are two noticable differences, 1) the ETA post is shorter, as the movement was made with the shortest hand stack, the ST18 is the small as the "normal" hand height, and 2) the number of spokes in the gear. This last difference may seems silly, but it is important, as ETA uses the number of spokes in the 4th wheel to denote the movement it works on, 6 spokes for 21,600 bph movements, 8 spokes for the 28,800 bph movements, and 5 spokes for the 36,000 bph movements. The only difference between the fouth wheels for the different speed movements would be the number of teeth the the big gear.

Here is the bottom of the winding bridge, note the post as one gear axle on the ST as opposted to the jewel on the ETA.

But, the ST still keeps a jewel on the post bearing:

Top view of the barrel bridge:

The rotor mount area:

The main gear train cock, with its three jewels (underside):

Top:

Another major difference. The ST uses the more ecomonical method of putting pins in the mainplate, as opposed to the ETA method of trepanning a post onn the bottom of the cock. Seagull uses this on all their ETA copies for all the bridges and cocks.

Also, here we see that ST had to adjust the end-shake of the balance. They did so with the simple method of driving a burr into the bottom of the balance cock. It may not be an elegant solution, but it does work.

The bottom view of the winding bridge:

The single reverser gear:

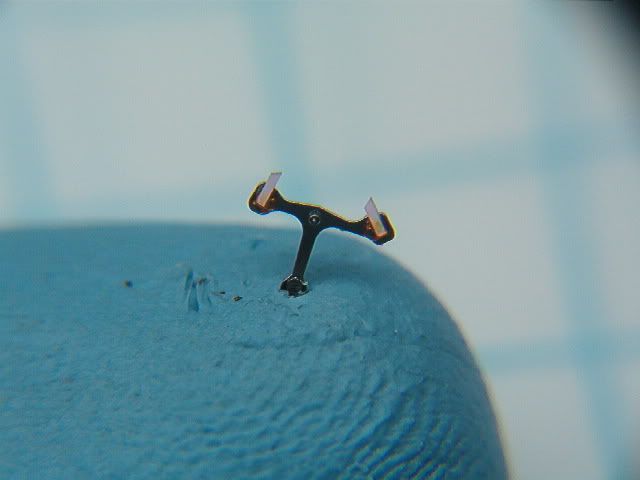

The underside of the pallet cock:
