Hi Guys and Girls,
This is my first forum entry.
![]()
I have recently purchased the Casio Edifice EQS-700DB-1A. The model has come out in February 2011. I'm doing this review because I could not find any info out there about the watch.
I made the purchase on eBay, if anyone needs info email me. I'm not in anyway affiliated with Casio or the seller. This is probably apparent from my review.
![]()
Lets get into it.
It is essentially identical to these models bar the colour of the dial and markings:
Edifice EQW-M710DB-7AJF White dial with black & white markings on a SS bracelet,
Edifice EQW-M710DB-1A1ER Black dial with grey and red markings on a SS bracelet,
Edifice EQW-M710-1AER Black dial with grey and Yellow marking on a rubber strap.
These models also have the Wave Cepter name on the watch. The three models are available on the european market only.
The Japanese movement is the same for all four watches. The movement is also used in the CASIO G-SHOCK GW-3000 range (the more bulky casing Casio, which was my original choice before this one).
![]()
![]()
Ok onto the watch. I wanted an affordable watch that was tough, water resistant, had GMT (if possible), SS bracelet, was analog with moving seconds hand. By affordable I meant under AU$500. Well this Casio Edifice came with those specs and more. Briefly, the watch is a chrono however the second hand moves when in time mode, bonus. It is Solar powered, 10 bar (100m) water resistant, 29 Time Zones, Local and 1 world time can be viewed at the same time. 24hr time, Alarm and a inner rotating bezel, that's right an inner rotating bezel.
Here are the specs from the Casio Site:
• Case / bezel material: Stainless steel
• Stainless Steel Band
• One-touch 3-fold Buckle
• Solid Band
• 100-meter water resistance
• Neobrite
• Sapphire Glass
• Partial ion plated
• Solar powered
• World time
• 29 time zones (29 cities + coordinated universal time), daylight saving on/off, Home city / World time city swapping
• 1/100-second stopwatch
• Measuring capacity: 23'59.99''
• Measuring modes: Elapsed time, split time
• Daily alarm
• Low battery alert
• Power Saving (Hands stop to save power when the watch is left in the dark.)
Full auto-calendar (to year 2099)
• Regular timekeeping
• Analog: 3 hands (hour, minute (hand moves every 10 seconds), second),
• 3 dials (24-hour, world time hour and minutes, day), date
• Accuracy: ±15 seconds per month
• Approx. battery operating time:
• 6 months on rechargeable battery (operation period with normal use without exposure to light after full charge)
• 28 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)
• Size of case/total weight: 50.5 X 47.3 X 12.6 mm/184 g.
![]()
![]()
My first thoughts:

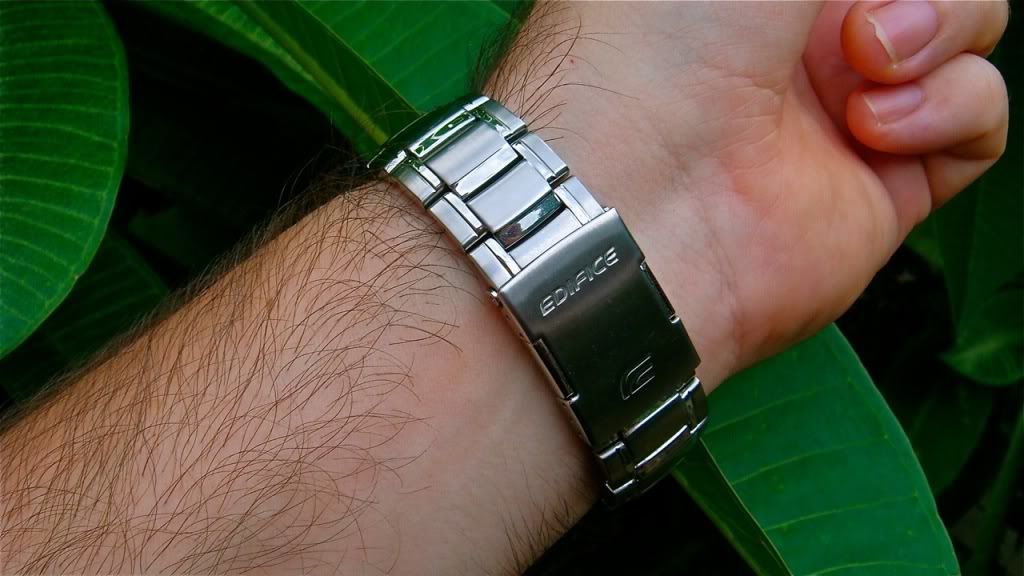

The watch comes with a bracelet with enough links to fit the biggest of wrists, I took 4 off and the watch is slightly loose on my wrist (first photo).
The watch is very comfortable and not too heavy, an OMEGA Seamaster PO with SS bracelet feels a lot heavier. At first I thought learning the functions is going to be difficult, however it wasn't too bad. Since it uses the UTC TIME FREQUENCY the time was already set, again not too hard to do it yourself.
![]()
![]()
Basically the watch has four modes to play with 1. Time 2. World Time (including DST on off) 3. Stop Watch 4. Alarm (10sec bip).

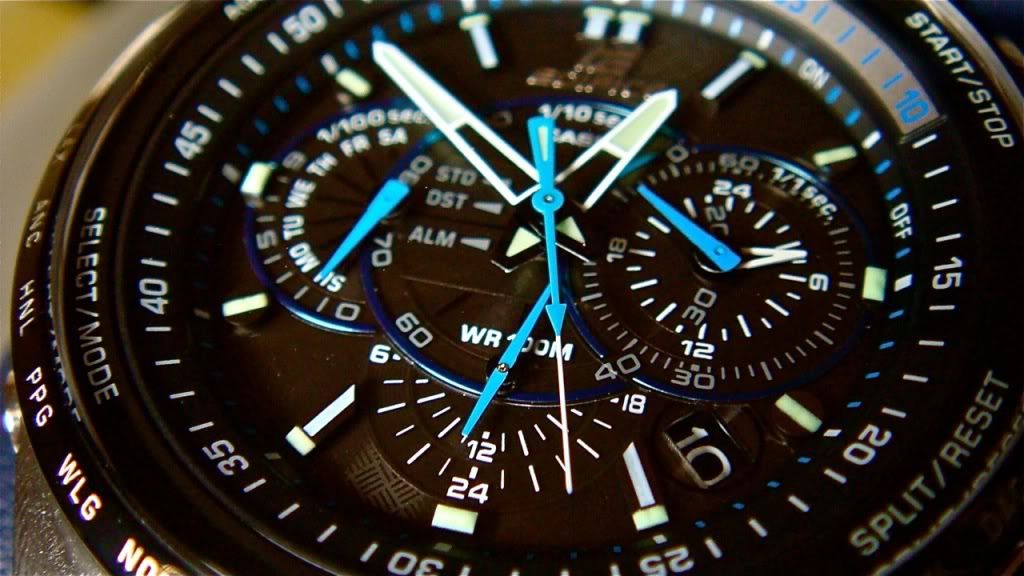

When in time mode or standard mode what is viewable is Local time, day, date, 24hr time and World time. When going through some of these modes the hands start moving into position and this really cool to watch. Again the moving second hand, when in std mode, is a cool feature as it makes the watch come alive, unlike a normal chrono. Also the second hand skips at 1 sec intervals when fully charged. When battery needs charging the hands skips at 2 sec intervals and stops altogether when battery has run out of power. It mentioned that a full charge can last about 5 months.
Overall you probably need fairly good eye sight as some of the info on the dial is quite small. Generally the dials and numbers took a while to get used to. This is however me being more used to the large numbers that you see on most Pilot watches etc. Night vision isn't too bad either. Also, did I mention the inner rotating bezel, this is a cool bonus.
![]()
![]()
I only have one gripe and that is about the crown. The crown is a little loose and I'm a bit worried this could be an issue. When I turn the crown the crown and inner bezel are quite loose and a bit too easy to turn. The crown can be moved by about 0.5mm off the case. Maybe someone can explain how these things are connected together, hopefully there is some kind of inner membrane in there to stop it from water getting in. I'm going to get it checked for pressure before any water usage.
UPDATE:
I had the watch pressure tested in water at around 20 BAR and no problems with the crown and inner bezel. I guess its just meant to be a bit loose. So for all those concerned all is good with the Edifice.
Thx Vicioussid.
