Full display test screen images.

29257 Views 33 Replies 23 Participants Last post by Phreddo, Dec 7, 2015

Konrad

Discussion Starter · Apr 14, 2009

In answer to a question about an image I posted showing the full display test screen, I learned which buttons to push from an entry on Riley's Wiki. Full credit for this info may also belong to others, my source is at:

http://mygshock.com/wiki/Trivia#How_do_you_display_the_test_screen_mode_on_a_G-Shock.3F

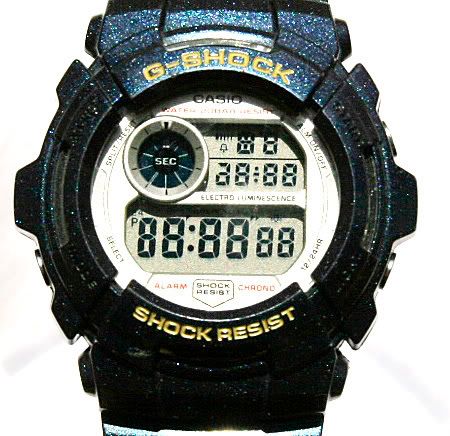

Here are some of my images of the test screen. Feel free to add your own images, might be useful to someone down the road.

Konrad.

See less See more

6

1 - 20 of 34 Posts

reznor

· #2 · Apr 14, 2009

Konrad said:

this pic is making my head spin :-d

Konrad

Discussion Starter · #3 · Apr 14, 2009

reznor said:
this pic is making my head spin :-d

Clockwise, I hope.

K.

Reactions: 1

Nightstalker1993

· #4 · Apr 14, 2009

can't seem to enter the TLT menu on my Mudman G9000

polaco23

· #5 · Apr 14, 2009

Konrad said:
Clockwise, I hope.

K.

:-d

kiwidj

· #6 · Apr 14, 2009

Great post and pics! :-!

WT_351

· #7 · Apr 15, 2009

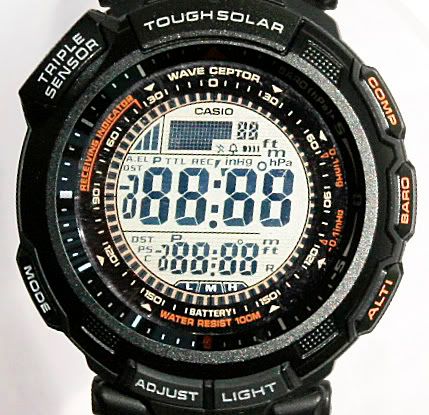

Here's a few more:

AWG-101

DW-5600

DW-6600

DW-6900

DW-9052

G-2300 (this one took help as the test only displays momentarily)

G-7500

G-8000

G-9000-3V

GW-1500

MTG-900

PAW-1200-7T (these have multiple screens)

PRG-90-3V (Notice the only difference between this and the PAW-1200 is the numbers painted on the crystal for the atomic reception. The display is identical.)

PAW-1300-1V

See less See more

16

stockae92

· #8 · Apr 15, 2009

LOL, that's a lot of test screens :-d

DragonJade

· #9 · Apr 15, 2009 (Edited)

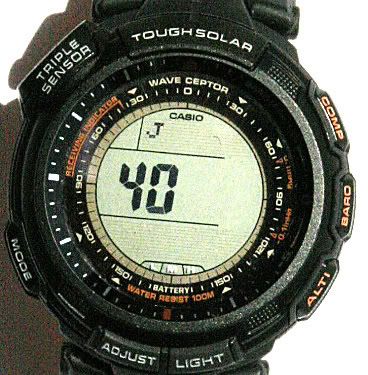

Here are some of my test screens:

Anyone know what the numbers mean on the above watches?

Also, while fiddling to get the test screen on thins (which I couldn't get), I found this:

And when failed to sync to the US clock, I got this:

See less See more

17

WT_351

· #10 · Apr 15, 2009 (Edited)

The four digit numbers that get displayed are the module numbers. I used to have a few shots of those, but can't find them now.

I had a really hard time getting the buttons pushed at the same time on the Pathfinders.

Off the top of my head, for anyone that may ask later, the numbers on the 1300 should be the atomic radio frequencies?

DragonJade

· #11 · Apr 15, 2009

WT_351 said:
The four digit numbers that get displayed are the module numbers. I used to have a few shots of those, but can't find them now.

Nicely done. However, I've got two anomalies:

2422 -> same

3070 -> same

2914 -> actual module number on case back is 2924

3050 -> actual module number on case back is 3089

DragonJade

· #12 · Apr 15, 2009

Got it now.

See less See more

10

bluegum

· #13 · Apr 15, 2009

WT_351 said:
G-2300 (this one took help as the test only displays momentarily)

Very impressive pics. |>

Can anyone explain what the numbers/letters/symbols are in the top of the bottom screen of the G-2300?

Also, what are the two little 'x' for?

I've never seen these on mine. :-s

Sose

· #14 · Apr 15, 2009

Konrad said:
Clockwise, I hope.

K.

:-d:-d:-d

Nightstalker1993

· #15 · Apr 15, 2009

See less See more

Topher1556

· #16 · Apr 15, 2009 (Edited)

******* said:
Very impressive pics. |>

Can anyone explain what the numbers/letters/symbols are in the top of the bottom screen of the G-2300?

Also, what are the two little 'x' for?

I've never seen these on mine. :-s

I was just wondering the same thing about the "60S30S--S".

The "X" is in the manual. It means the battery is too low to generate the "beeps".

The world is a dangerous place, not because of those who do evil, but because of those who look on and do nothing.
-Albert Einstein

The unforgivable crime is soft hitting. Do not hit at all if it can be avoided; but never hit softly.
-Theodore Roosevelt

My Team
Casio DW-6900-1V; DW-9100; GW-5600J-1; GW-6900-1; GW-6900B; GW-7900B; GW-9200-1; GW-A1000FC-2ADR; GW-M5600-1ER; MTG-520; PAW-1500T
Citizen AT0660-05F; AT4004-52E; AT8020-54L; ATD53-3011; AV0021-52H; AV0031-59A; BL1258-53L; BL5440-58E; BN0088-03E; BN0100-51E; BZ0000-50E; EBJ74-1741; JY0010-50E; JV0020-12F; JY0000-53E; JY8000-50E; PMD56-2861; PMT56-2731; PMX56-2812
Omega Planet Ocean XL 2200.50.00
Rolex Two-tone 1500
Seiko SARB023; SBDB001; SBDC003; SBPG001; SKA371; SKA511; SKXA33; SKZ325; SLT079; SLT081; SNDA59; SNE109; SNE283; SNG045; SPB001J; SRP043; SRP227; SRP307; SSC017
Tag Heuer 500m Aquaracer WAJ2110.BA0870

Konrad

Discussion Starter · #17 · Apr 16, 2009

Some really interesting display screen images. Especially like the dual layer ABC watch.

DragonJade: On my OCG I can only get the full test and the TLT, I can't get the other screens so far so I can't answer what they mean.

Konrad.
