Last weekend, I decided to do a badly needed COA on a 2414 movement. The trouble is, there is no service info available anywhere that I can find. The articles submitted by Marc_wl were very helpful, but I decided to fully disassemble the movements. So, for safety's sake, I documented the disassembly using the camera.

The next challenge was (of course) the assembly, what to oil, which oil to use, and how much. Again, there are no guidelines.

What I did was to find data sheets on other movements. I used info available from ETA and Seiko, and took what I learned in the Time Zone Watch School course 1 and 2, and made an educated guess as to what would work for the Vostok.

After all that, I printed up my notes, and did a COA on another 2414 movement. All in all, using the different junk that seems to accumulate, I was able to to take 3 broken or barely running movements and build 2 that run well.

It occurred to me that this is a resource that I can share, so here goes. What I ask is that those of you who have watchmaking experience, please critique my choices of assembly, cleaning, and lubrication. If you have any suggestions for different choices that I could have made, please let me know about it. Also, those of you in the know about watch innards, I tried to name each part. If you can think of a better name for a part that is more accurate, descriptive, or conventional, please let me know.

Also please note, the oils that I used were chosen because they were on hand from my TZWS toolkit, for use in Swiss watches. Your choice of oils may be different depending on what is available in your area.

For those of you without watchmaking experience, please note that what follows is not a tutorial. These are just my notes, and some visual reminders of what goes where. I do not discuss technique in this article. I would encourage fans of Russian watches to get some formal instruction before attempting this.


Here goes:

Service notes
Boctok caliber 2414
Dave Murphy




Dial Side






Back Side:
Unwind Barrel
Remove Stem
Remove 2 screws and Movement Spacer
Remove 2 Dial Screws (not seen in this photo)







Remove Calendar Jumper Spring
Remove 3 screws and Calendar cover plate

Note:
These are Flat head screws








Remove:
1.) Calendar Jumper
2.) Foil
3.)Hour Wheel
4.)Date Ring
5.)intermediate calendar wheel
6.)screw and Calendar wheel
7.)Calendar cam (under the calendar wheel)
8.)screw and Calendar cam spring (under the date ring)









Remove:
3 screws and Keyless Cover

Note:
These are Cheese head screws









Remove:
1.)minute wheel
2.)setting wheel
3.)setting yoke spring
4.)setting yoke
5.)setting lever
6.)sliding pinion
7.)winding pinion








Remove Cannon Pinion using a pin vise [edit--NEG suggests using a cannon pinion puller instead of the pin vise]





Remove:

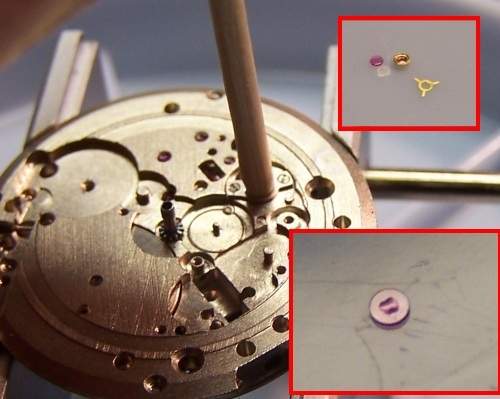

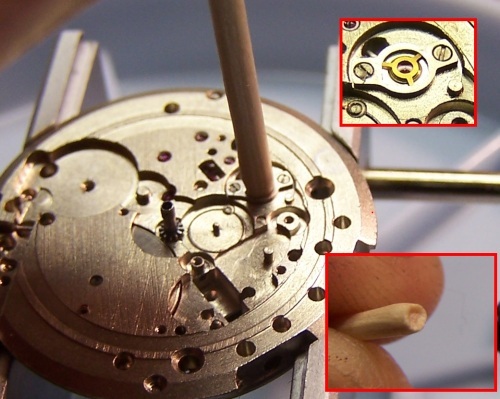

shock spring
cap jewel
balance pivot

Note: use tool made from pegwood








Remove:
1.)The other shock assembly
2.)Screw, click, and click spring underneath
3.)screw and ratchet wheel
4.)Left Hand screw and crown wheel
5.)screw and seconds hand pinion end spring
6.)2 screws and wheel train bridge









Remove:
1.)Seconds hand pinion
2.)3rd wheel
3.)4th wheel
4.)3 screws and winding bridge






Remove:
1.)center wheel
2.)escape wheel
3.)stem release button
4.)mainspring Barrel
5.)1 screw and balance assembly

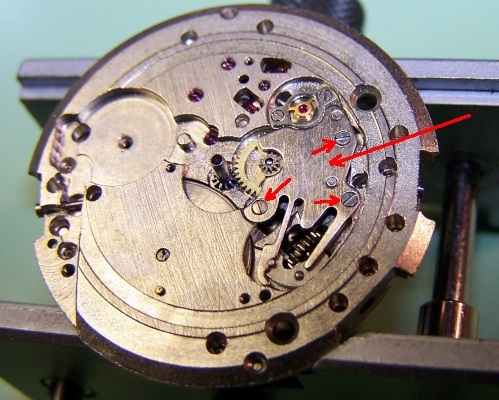

Note: 6 screws (3-winding bridge, 2-train bridge, 1-balance cock) are identical








Remove:
1.) 1 screw and pallet lever bridge
2.) pallet lever








Boctok 2414
Cleaning and Oiling notes
Dave Murphy

Cleaned in ultrasonic cleaner, in 3 beakers.
Cleaning: 2 cycles in L&R Extra Fine Watch Cleaning Solution
First Rinse: 1 cycle in L&R Ultrasonic Watch Rinsing Solution
Final Rinse: 1 cycle in L&R Ultrasonic Watch Rinsing Solution

1 load: Entire keyless, setting, and calendar works EXCEPT day ring
1 Load: Motion works
1 load; all plates and bridges
1 load: Balance assembly, alone

After final rinse:
Balance assembly, balance pierced and cap jewels, shock assemblies rinsed in “One Dip” hairspring cleaner.

Oiling strategy:

Moebius 9010 on low-load jeweled pivots
Moebius 9020 on medium-load jeweled pivots
Moebius D-5 on high-load jeweled pivots
Moebius 9415 on pallet stones
Moebius 8141 in the mainspring barrel
PML Stem Grease for metal-to-metal sliding contact

Oiling amounts:
Using the black oiler,
Light = dipped to a depth 1/3 of the oiler’s width.
Medium= dipped to a depth 2/3 of the oiler’s width.
Heavy= dipped to a depth equal to the oiler’s width.

Unless noted, use light to medium oiling on the black oiler.



Boctok 2414 Assembly and Oiling
Dave Murphy





Assemble:

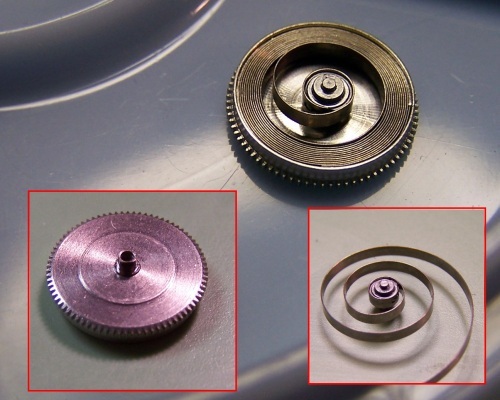

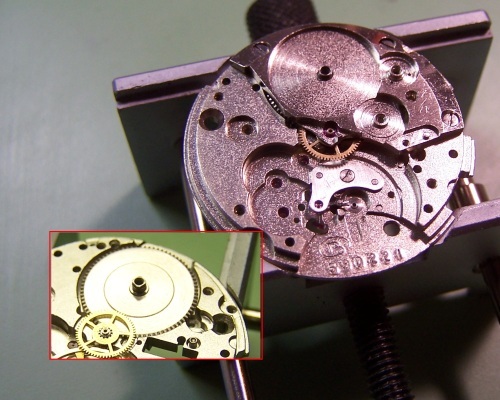

Arbor to Mainspring using pin vise (inset)
Wind spring into barrel

Lubricate:
Barrel floor, 8141, yellow oiler medium-heavy
Mainspring coils, 8141, yellow oiler, medium heavy

Assemble:
Barrel cover

Lubricate:
Barrel arbor, D5, (both sides) (inset)






Assemble:

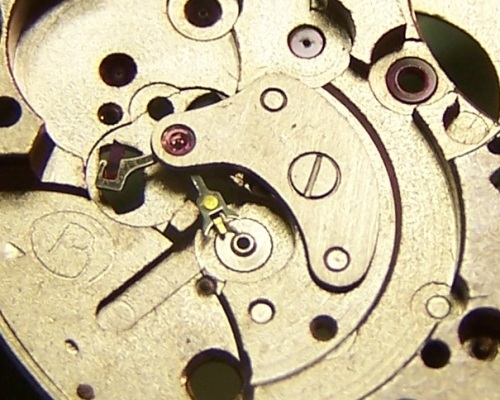

Pallet Lever
Pallet lever bridge and 1 screw

Lubricate:
Pallet lever pivots, 9010, very light or none at all. (both sides) [edit--lysanderxiii suggests no lubrication here.]

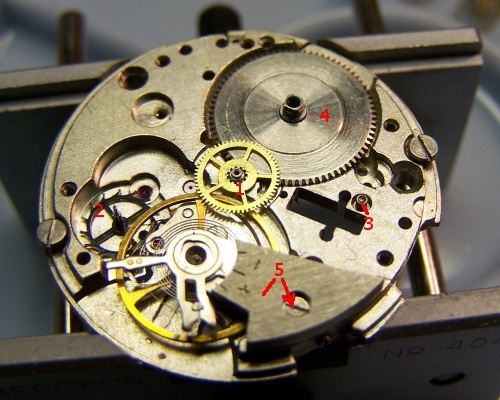

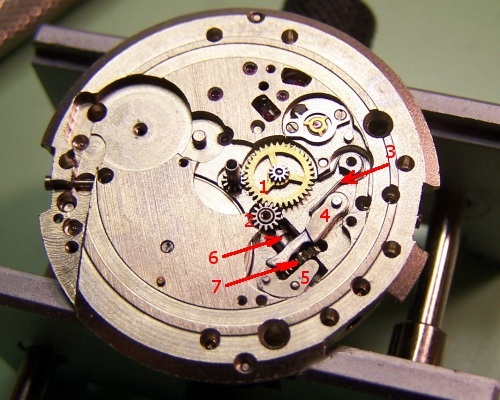

Identification of wheels:







Assemble:

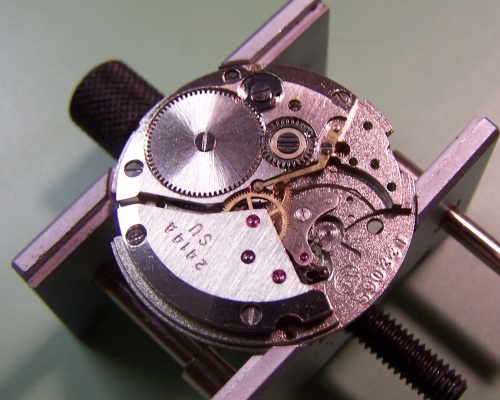

Mainspring Barrel (inset)
Center Wheel (inset)
The Stem Release Button! (inset)

Winding Bridge and 3 screws

Lubricate:
Center wheel jewels, D-5, (both sides)
Barrel Arbors, D-5 heavy, both sides




Assemble:
Escape wheel
4th wheel
3rd wheel

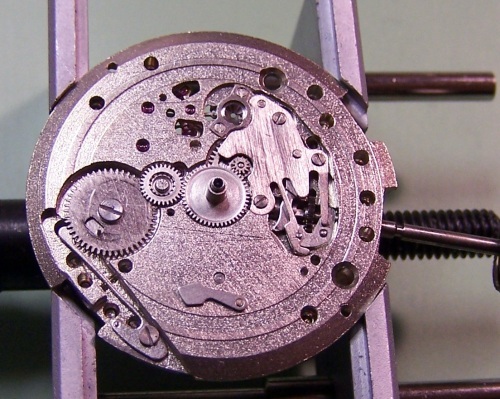

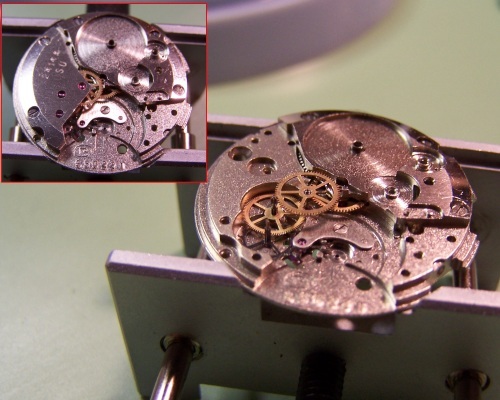

Wheel train Bridge and 2 screws (inset)

Lubricate:
Escape wheel pivots 9010 both sides
4th wheel pivots 9010 both sides
3rd wheel pivots 9020 both sides




Assemble:
Seconds hand pinion

Lubricate:
bearing surface, underside of seconds hand pinion spring, D-5
surface under click, 9010

Assemble:
seconds hand pinion spring and 1 screw
ratchet wheel and 1 screw
click spring
click and 1 screw
crown wheel

Lubricate:
click post 9010
crown wheel post D-5
crown wheel bushing D-5

Assemble:
Left hand screw to crown wheel




Flip to the dial side of the movement.

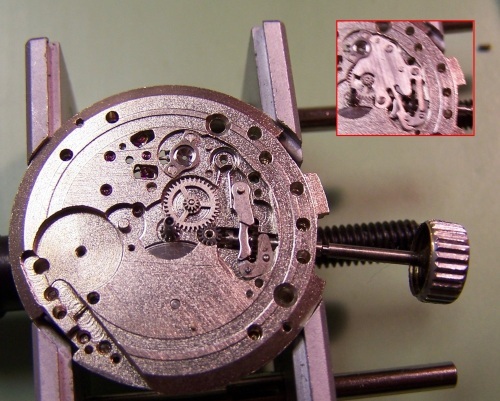

Lubricate pallet stones, Light 9415, on impulse surfaces only. Access is through the 2 rectangular holes.




Assemble:
balance assembly, 1 screw




Lubricate cap jewel, medium heavy, to cover 1/2 to 2/3 of cap jewel (inset)

Assemble pierced jewel to cap jewel
assemble shock assemblies with pegwood tool.

At this point, movement should run. Put a screwdriver in the screw holding the ratchet wheel, and wind.








Lubricate:

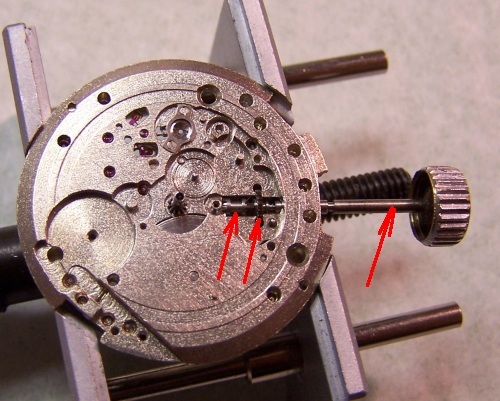

Stem pivot, PML
Stem clutch square, PML
Stem set lever notch, PML
Stem shoulder, PML

Assemble:
Stem
Sliding Clutch Pinion
Winding Pinion

Lubricate:
Sliding Clutch pinion slot, PML
Sliding Clutch pinion Breguet teeth, PML
Winding Pinion Breguet teeth, PML






Lubricate:
Seconds hand pinion, 9010
Center wheel post, PML [edit--NEG suggests D5 here]

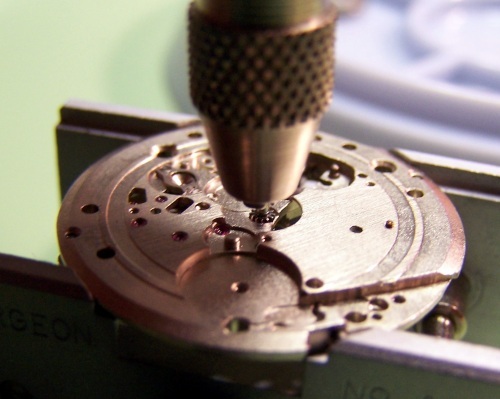

Install Cannon pinion using pin vise





Lubricate with PML:
Stem Release button
Post for setting yoke
Post for minute wheel
Post for setting wheel

Assemble:
minute wheel
setting wheel
setting lever
setting yoke
setting yoke spring

Lubricate with PML:
"heel" of setting yoke
post on setting lever
side of setting lever where keyless cover springs against it
edge of setting lever where it touches the setting yoke

Assemble:
Keyless cover and 3 screws. (inset)
note: hook the cover spring on to the post on the setting lever





Lubricate outside of Cannon pinion, D-5 [edit--NEG suggests 9020 here]

Lubricate with PML:
post for intermediate calendar wheel
under calendar cam
post for date ring jumper

assemble:
Hour Wheel
Dial Foil (not shown)
intermediate calendar wheel
calendar cam
date ring jumper

Lubricate with PML:
top of calendar wheel
hub+shoulder of calendar wheel screw

Install:
date wheel jumper
calendar wheel with 1 screw
calendar cam spring and 1 screw





Lubricate:
2 or 3 teeth of the date ring, PML

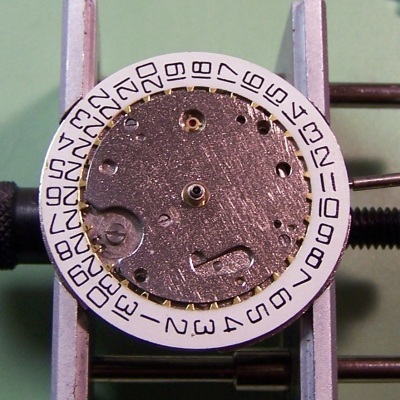

Assemble:
Date ring,
Calendar cover and 3 screws
calendar jumper spring

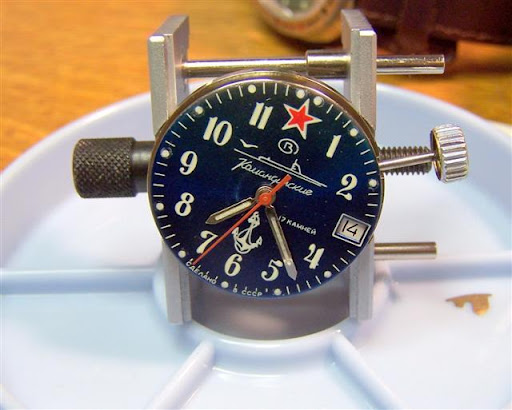

put a dial and hands on, and see how it runs...


·

Registered
Joined
·
1 Posts
Hi I'm a new member and just happened to see you worked on a 2414. I just picked up one of these at a Goodwill store. Wouldn't wind up. Found that the end of the main spring reverse catch had separated. The reverse catch was originally spot welded to the main spring and this spot weld came loose. My fix was to anneal the end of the main spring and bend it back 180 degrees with a little bit of the tip bent outward to catch on the barrel, I then did a re-harden rewound the spring into the barrel and viola it's like new. Not a bad looking watch. palletstone

Last weekend, I decided to do a badly needed COA on a 2414 movement. The trouble is, there is no service info available anywhere that I can find. The articles submitted by Marc_wl were very helpful, but I decided to fully disassemble the movements. So, for safety's sake, I documented the disassembly using the camera.

The next challenge was (of course) the assembly, what to oil, which oil to use, and how much. Again, there are no guidelines.

What I did was to find data sheets on other movements. I used info available from ETA and Seiko, and took what I learned in the Time Zone Watch School course 1 and 2, and made an educated guess as to what would work for the Vostok.

After all that, I printed up my notes, and did a COA on another 2414 movement. All in all, using the different junk that seems to accumulate, I was able to to take 3 broken or barely running movements and build 2 that run well.

It occurred to me that this is a resource that I can share, so here goes. What I ask is that those of you who have watchmaking experience, please critique my choices of assembly, cleaning, and lubrication. If you have any suggestions for different choices that I could have made, please let me know about it. Also, those of you in the know about watch innards, I tried to name each part. If you can think of a better name for a part that is more accurate, descriptive, or conventional, please let me know.

Also please note, the oils that I used were chosen because they were on hand from my TZWS toolkit, for use in Swiss watches. Your choice of oils may be different depending on what is available in your area.

For those of you without watchmaking experience, please note that what follows is not a tutorial. These are just my notes, and some visual reminders of what goes where. I do not discuss technique in this article. I would encourage fans of Russian watches to get some formal instruction before attempting this.


Here goes:

Service notes
Boctok caliber 2414
Dave Murphy




Dial Side






Back Side:
Unwind Barrel
Remove Stem
Remove 2 screws and Movement Spacer
Remove 2 Dial Screws (not seen in this photo)







Remove Calendar Jumper Spring
Remove 3 screws and Calendar cover plate

Note:
These are Flat head screws








Remove:
1.) Calendar Jumper
2.) Foil
3.)Hour Wheel
4.)Date Ring
5.)intermediate calendar wheel
6.)screw and Calendar wheel
7.)Calendar cam (under the calendar wheel)
8.)screw and Calendar cam spring (under the date ring)









Remove:
3 screws and Keyless Cover

Note:
These are Cheese head screws









Remove:
1.)minute wheel
2.)setting wheel
3.)setting yoke spring
4.)setting yoke
5.)setting lever
6.)sliding pinion
7.)winding pinion








Remove Cannon Pinion using a pin vise [edit--NEG suggests using a cannon pinion puller instead of the pin vise]





Remove:
shock spring
cap jewel
balance pivot

Note: use tool made from pegwood








Remove:
1.)The other shock assembly
2.)Screw, click, and click spring underneath
3.)screw and ratchet wheel
4.)Left Hand screw and crown wheel
5.)screw and seconds hand pinion end spring
6.)2 screws and wheel train bridge









Remove:
1.)Seconds hand pinion
2.)3rd wheel
3.)4th wheel
4.)3 screws and winding bridge






Remove:
1.)center wheel
2.)escape wheel
3.)stem release button
4.)mainspring Barrel
5.)1 screw and balance assembly

Note: 6 screws (3-winding bridge, 2-train bridge, 1-balance cock) are identical








Remove:
1.) 1 screw and pallet lever bridge
2.) pallet lever








Boctok 2414
Cleaning and Oiling notes
Dave Murphy

Cleaned in ultrasonic cleaner, in 3 beakers.
Cleaning: 2 cycles in L&R Extra Fine Watch Cleaning Solution
First Rinse: 1 cycle in L&R Ultrasonic Watch Rinsing Solution
Final Rinse: 1 cycle in L&R Ultrasonic Watch Rinsing Solution

1 load: Entire keyless, setting, and calendar works EXCEPT day ring
1 Load: Motion works
1 load; all plates and bridges
1 load: Balance assembly, alone

After final rinse:
Balance assembly, balance pierced and cap jewels, shock assemblies rinsed in “One Dip” hairspring cleaner.

Oiling strategy:

Moebius 9010 on low-load jeweled pivots
Moebius 9020 on medium-load jeweled pivots
Moebius D-5 on high-load jeweled pivots
Moebius 9415 on pallet stones
Moebius 8141 in the mainspring barrel
PML Stem Grease for metal-to-metal sliding contact

Oiling amounts:
Using the black oiler,
Light = dipped to a depth 1/3 of the oiler’s width.
Medium= dipped to a depth 2/3 of the oiler’s width.
Heavy= dipped to a depth equal to the oiler’s width.

Unless noted, use light to medium oiling on the black oiler.



Boctok 2414 Assembly and Oiling
Dave Murphy





Assemble:
Arbor to Mainspring using pin vise (inset)
Wind spring into barrel

Lubricate:
Barrel floor, 8141, yellow oiler medium-heavy
Mainspring coils, 8141, yellow oiler, medium heavy

Assemble:
Barrel cover

Lubricate:
Barrel arbor, D5, (both sides) (inset)






Assemble:
Pallet Lever
Pallet lever bridge and 1 screw

Lubricate:
Pallet lever pivots, 9010, very light or none at all. (both sides) [edit--lysanderxiii suggests no lubrication here.]




Identification of wheels:







Assemble:
Mainspring Barrel (inset)
Center Wheel (inset)
The Stem Release Button! (inset)

Winding Bridge and 3 screws

Lubricate:
Center wheel jewels, D-5, (both sides)
Barrel Arbors, D-5 heavy, both sides




Assemble:
Escape wheel
4th wheel
3rd wheel

Wheel train Bridge and 2 screws (inset)

Lubricate:
Escape wheel pivots 9010 both sides
4th wheel pivots 9010 both sides
3rd wheel pivots 9020 both sides




Assemble:
Seconds hand pinion

Lubricate:
bearing surface, underside of seconds hand pinion spring, D-5
surface under click, 9010

Assemble:
seconds hand pinion spring and 1 screw
ratchet wheel and 1 screw
click spring
click and 1 screw
crown wheel

Lubricate:
click post 9010
crown wheel post D-5
crown wheel bushing D-5

Assemble:
Left hand screw to crown wheel




Flip to the dial side of the movement.

Lubricate pallet stones, Light 9415, on impulse surfaces only. Access is through the 2 rectangular holes.




Assemble:
balance assembly, 1 screw




Lubricate cap jewel, medium heavy, to cover 1/2 to 2/3 of cap jewel (inset)

Assemble pierced jewel to cap jewel
assemble shock assemblies with pegwood tool.

At this point, movement should run. Put a screwdriver in the screw holding the ratchet wheel, and wind.








Lubricate:
Stem pivot, PML
Stem clutch square, PML
Stem set lever notch, PML
Stem shoulder, PML

Assemble:
Stem
Sliding Clutch Pinion
Winding Pinion

Lubricate:
Sliding Clutch pinion slot, PML
Sliding Clutch pinion Breguet teeth, PML
Winding Pinion Breguet teeth, PML






Lubricate:
Seconds hand pinion, 9010
Center wheel post, PML [edit--NEG suggests D5 here]

Install Cannon pinion using pin vise





Lubricate with PML:
Stem Release button
Post for setting yoke
Post for minute wheel
Post for setting wheel

Assemble:
minute wheel
setting wheel
setting lever
setting yoke
setting yoke spring

Lubricate with PML:
"heel" of setting yoke
post on setting lever
side of setting lever where keyless cover springs against it
edge of setting lever where it touches the setting yoke

Assemble:
Keyless cover and 3 screws. (inset)
note: hook the cover spring on to the post on the setting lever





Lubricate outside of Cannon pinion, D-5 [edit--NEG suggests 9020 here]

Lubricate with PML:
post for intermediate calendar wheel
under calendar cam
post for date ring jumper

assemble:
Hour Wheel
Dial Foil (not shown)
intermediate calendar wheel
calendar cam
date ring jumper

Lubricate with PML:
top of calendar wheel
hub+shoulder of calendar wheel screw

Install:
date wheel jumper
calendar wheel with 1 screw
calendar cam spring and 1 screw





Lubricate:
2 or 3 teeth of the date ring, PML

Assemble:
Date ring,
Calendar cover and 3 screws
calendar jumper spring





put a dial and hands on, and see how it runs...
